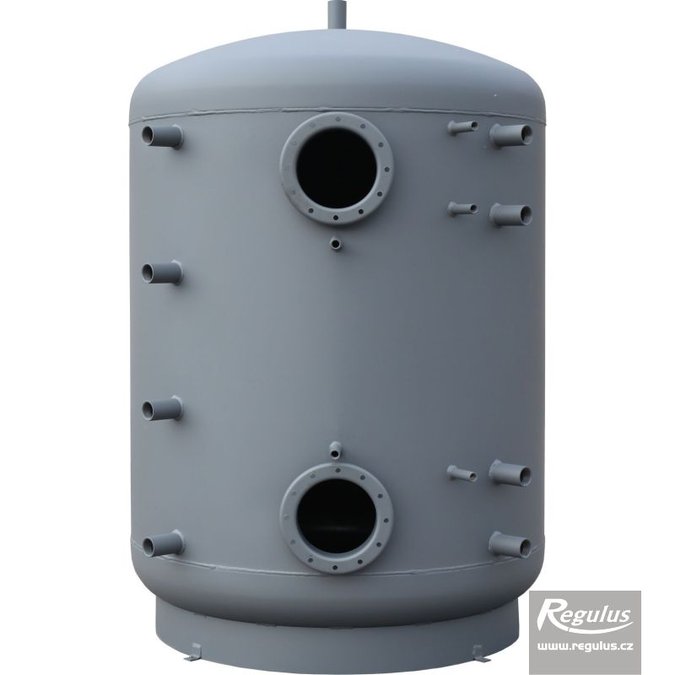

PS2F 5000 N25 Thermal Store

Thermal Store designed for storing and subsequent distribution of thermal energy from solid-fuel boilers, heat pumps or other heat sources. It features 9 G 2 1/2” tappings to connect to heat sources or loads, or insert el. heating elements. The tank is fitted with 2 flanged openings that can permit installation of a DHW tube heat exchanger or connecting a solar thermal system.

Code 14466
Availability
Out of stock
Label PS2F 5000 N25
Type tank
Number of heat exchangers 0
Number of flanges 2
Number of tappings 9
Energy efficiency class not applicable
Total volume 4994 l
Diameter 1600 mm
Units pcs
Packaging none
Packaging dimensions 160 x 286 x 180 cm
Gross weight 510 kg

Download

Technical Data Sheet| Show (PDF 258 kB)
Manual| Show (PDF 435 kB)
