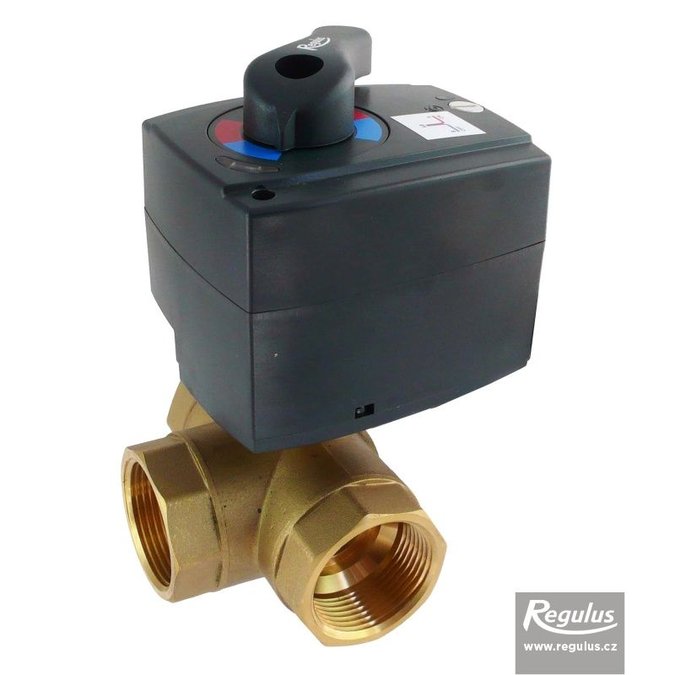

VZK R 325 L 5/4F Three-Way Ball Valve, 2-point actuator, 60 s
Ball zone valve intended for heating or solar thermal systems with water or antifreeze fluid and for systems with drinking water. The valve is equipped with a single-pole control actuator. The actuator can be removed without removing the valve from the system. The valve requires Neutral, Permanent Live and Switched Live. The outlet B is open without Switched Live, as soon as Switched Live is present, the outlet A opens fully within 60 s.
|Label||VZK R 325-230-1P-60 L 5/4F|
|Packaging dimensions||20 x 12,9 x 15 cm|
|Gross weight||1,784 kg|
