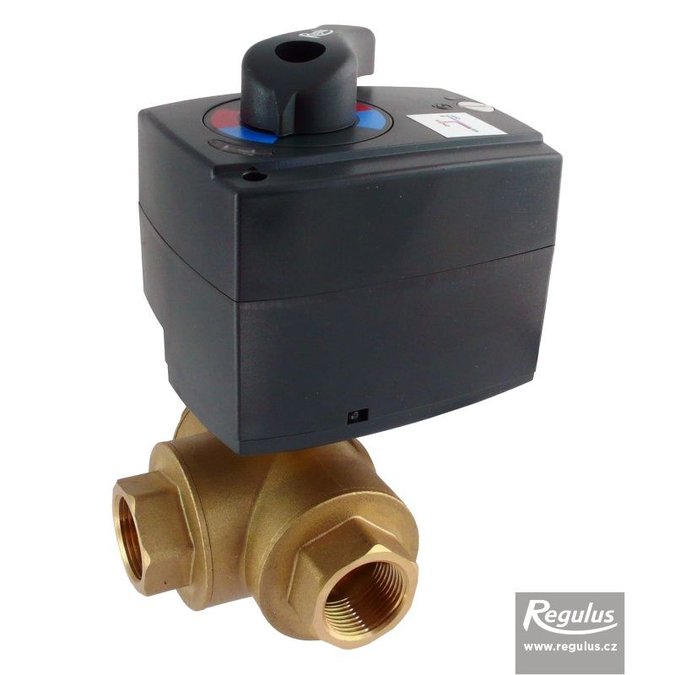

VZK R 325 T 3/4F Three-Way Ball Valve, 2-point actuator, 60 s

Ball zone valve intended for heating or solar thermal systems with water or antifreeze fluid and for systems with drinking water. The valve is equipped with a single-pole control actuator. The actuator can be removed without removing the valve from the system. The valve requires Neutral, Permanent Live and Switched Live. The outlet B is open without Switched Live, as soon as Switched Live is present, the outlet A opens fully within 60 s.

Code 18673
Availability
out of stock
Label VZK R 325-230-1P-60 T 3/4F
Connection 3/4"
Kvs 13,1
Valve type three-way
Actuator 2-point control
Code 18673
Units pcs
Packaging box
Packaging dimensions 20 x 13 x 15 cm
Gross weight 1,794 kg

Download

Technical Data Sheet| Show (PDF 293 kB)
Manual| Show (PDF 3.2 MB)
