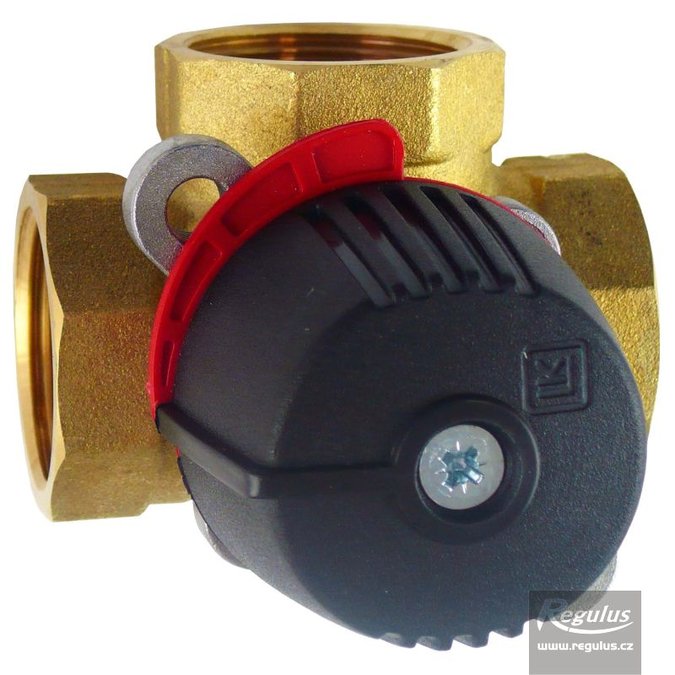

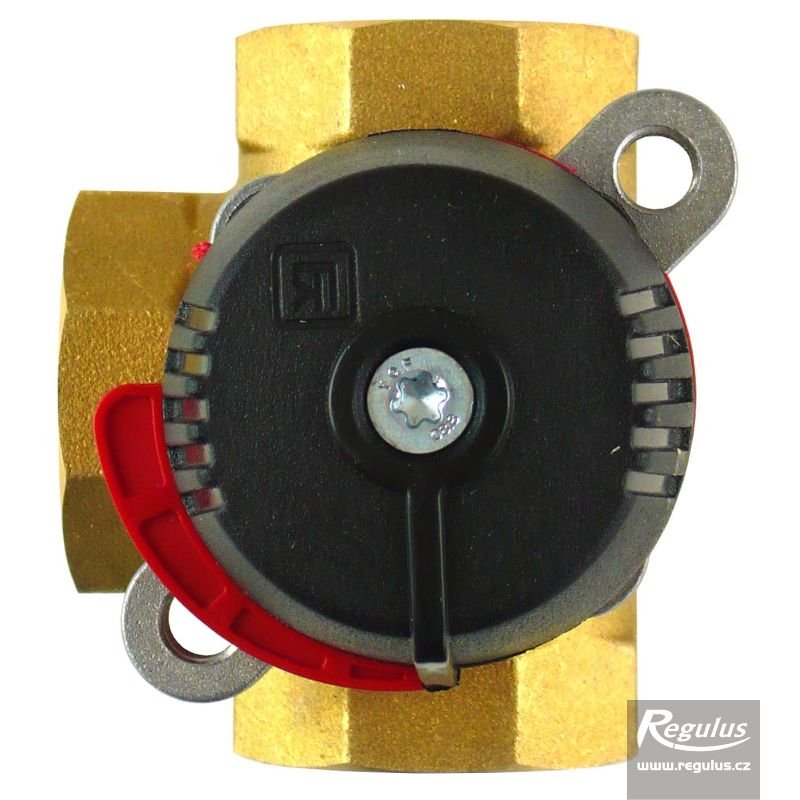

LK 840 2.0 Three-way Mixing Valve, 1" F, Kvs 10.0

Mixing valve with a rotating inner segment intended for heating or solar thermal systems with water or antifreeze fluid. They have a linear flow rate characteristic in the range between 30° and 60° of the segment rotation. The valves can be fitted with any actuator supplied by Regulus. The valve can be easily converted between a left or right hand version for use in different positions in a heating system.

Code 16700
in stock
Label LK 840 1F KVS10 2.0
Connection 1"
Kvs 10
Valve type three-way
Code 16700
Units pcs
Packaging pcs
Packaging dimensions 9,5 x 9 x 9,5 cm
Gross weight 0,48 kg


Product Sheet| Show (PDF 362 kB)
Technical Data Sheet| Show (PDF 326 kB)
