BIO 55 MIX W-PWM 1F TRS6K Load Unit

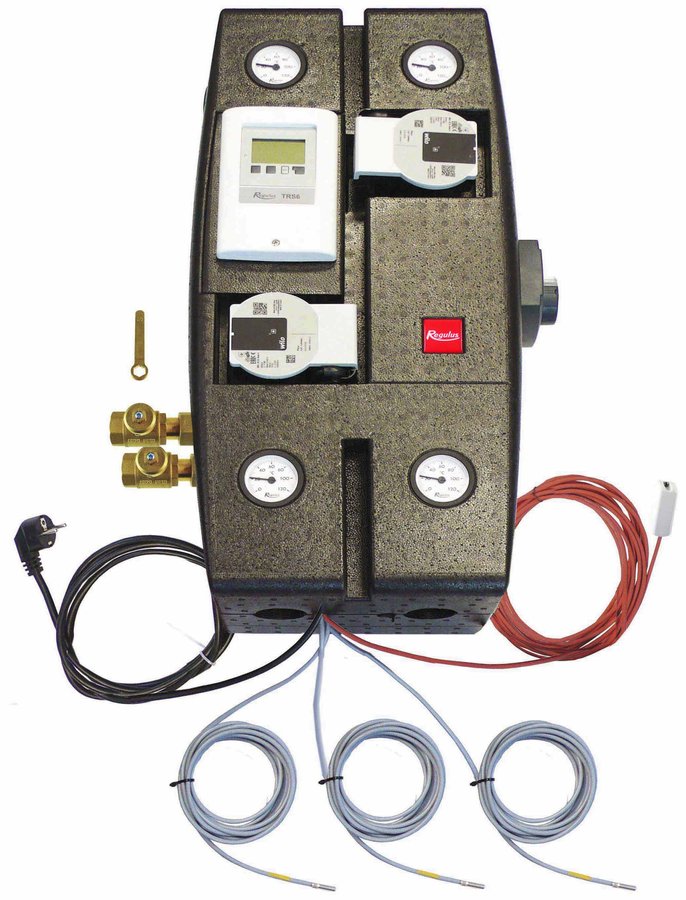

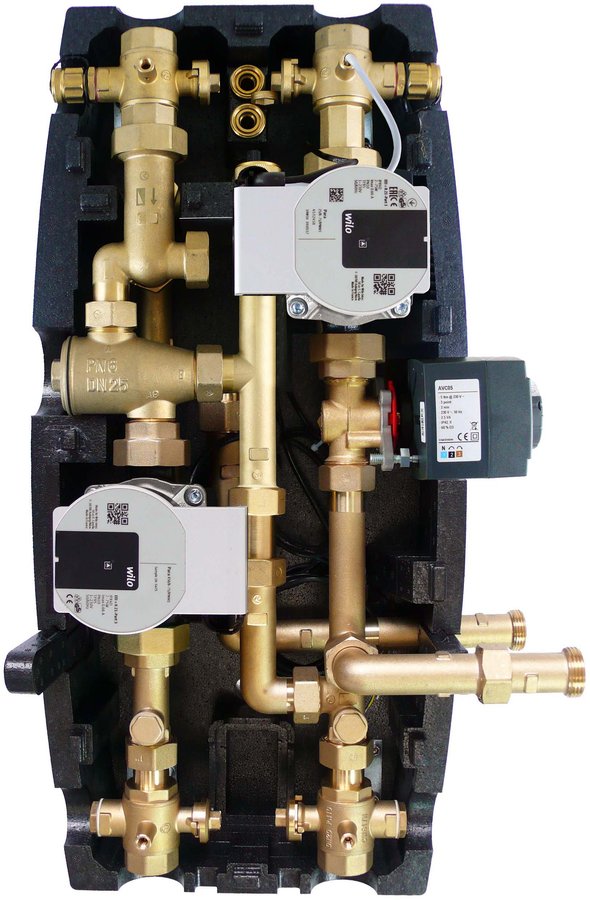

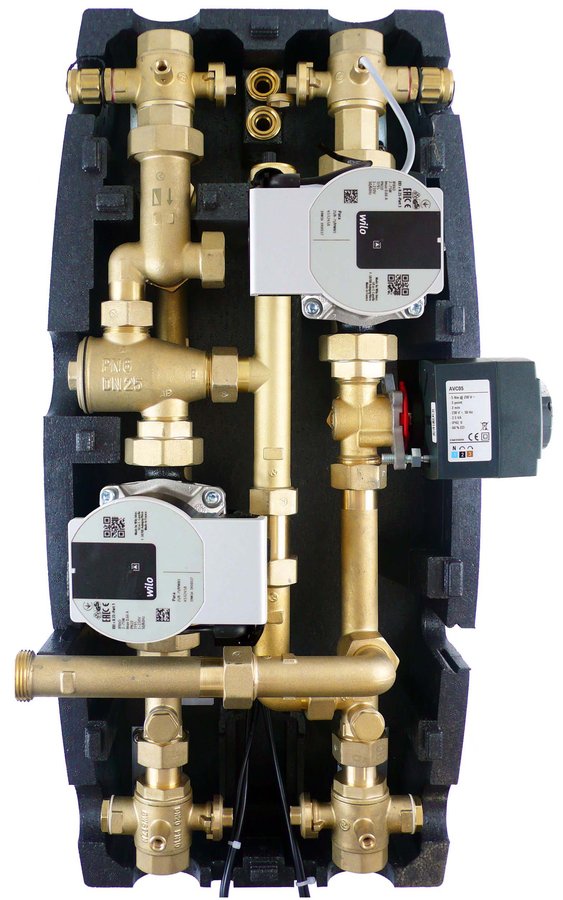

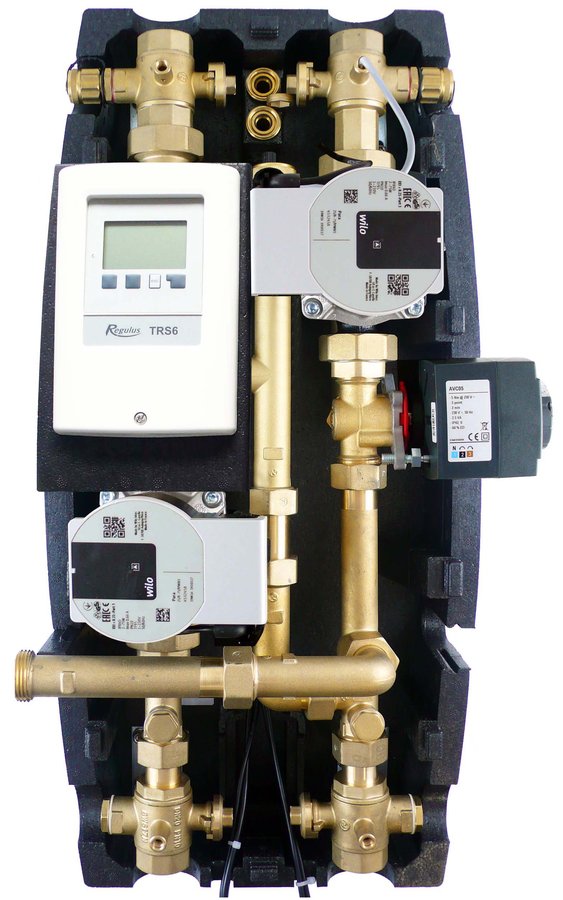

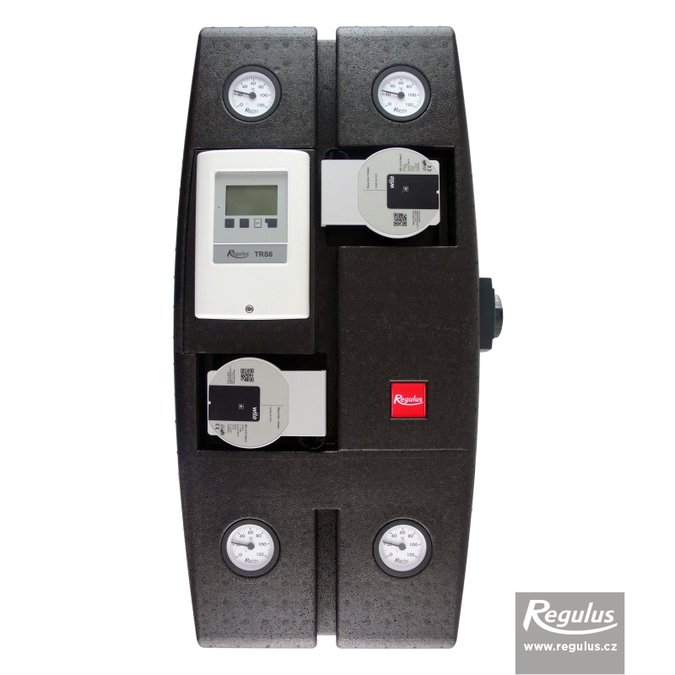

Insulated Load Unit with a controller, actuated 3-way mixing valve (Kvs = 6.3 m3/h), 2 pumps, TSV3B 55°C load valve, ball valves, drain valves, a safety valve, thermometers. The Unit is intended for heating systems with a solid fuel boiler & thermal store, permitting DHW heating. Heating system water is mixed in a 3-way mixing valve with el. actuator, the temperature of return water to a boiler is kept at 55°C min. by a load valve. Boiler heat surplus is stored into a thermal store and used later automatically after the boiler goes out. The integrated Controller controls operation of the whole

Code 17499
Availability
in stock
Label BIO 55 MIX W-PWM 1F TRS6K
Connection 1"
Code 17499
Units pcs
Packaging none
Packaging dimensions 39 x 26 x 68 cm
Gross weight 20,22 kg

Download

Leaflet| Show (PDF 285 kB)
Technical data sheet| Show (PDF 1.1 MB)
Manual| Show (PDF 13.9 MB)
Manual - pump| Show (PDF 984 kB)

Video
