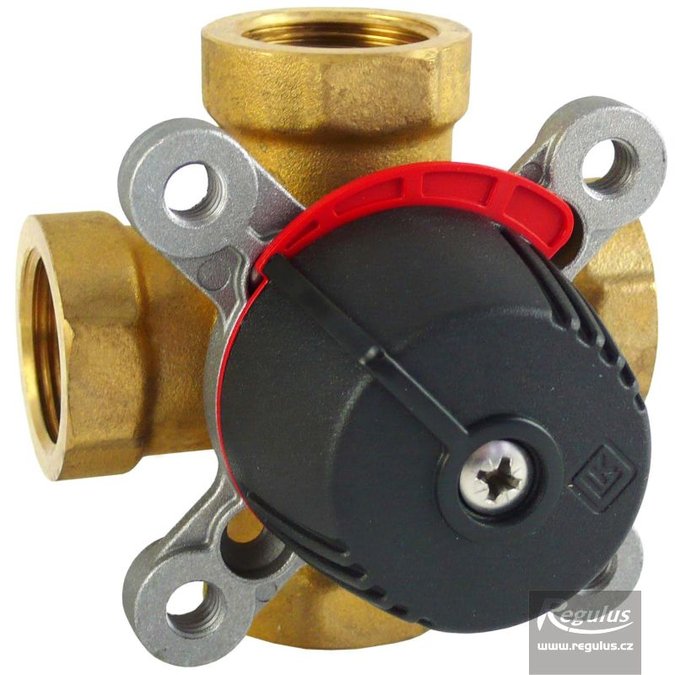

LK 841 Four-way Mixing Valve, 3/4" F, Kvs 4.0

Mixing valve with a rotating inner segment intended for heating or solar thermal systems with water or antifreeze fluid. They have a linear flow rate characteristic in the range between 30° and 60° of the segment rotation. The valves can be fitted with any actuator supplied by Regulus. The valve can be easily converted between a left or right hand version for use in different positions in a heating system.

Code 14864
in stock
Label LK 841 3/4F KVS 4,0
Connection 3/4"
Kvs 4
Valve type four-way
Code 14864
Units pcs
Packaging box
Packaging dimensions 9,5 x 9 x 9,5 cm
Gross weight 0,625 kg


Product Sheet| Show (PDF 377 kB)
Technical Data Sheet| Show (PDF 398 kB)
Manual| Show (PDF 724 kB)
