RegulusBIO detail

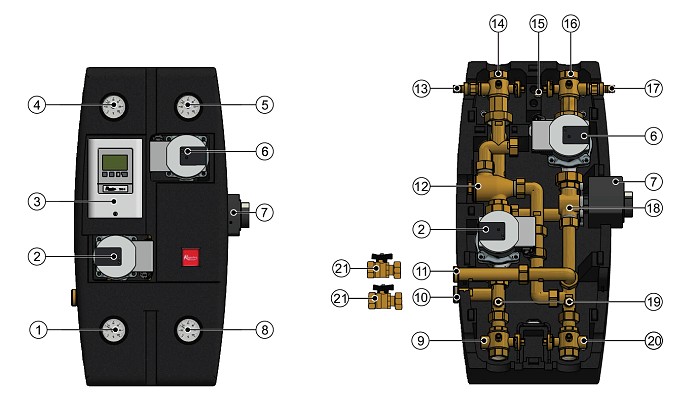

Components

1 – Heating water thermometer, inlet to boiler circuit
2 – Wilo Para 25/8 iPWM1 pump in boiler circuit
3 – TRS6 BIOMIX Controller
4 – Heating water thermometer, outlet from heating circuit
5 – Heating water thermometer, inlet to heating circuit
6 – Wilo Para 25/8 iPWM1 pump in heating circuit
7 – Mixing valve actuator
8 – Heating water thermometer, outlet from boiler circuit
9 – G 1“ Fu × G 1“ F × G 1/2 “ F ball valve w. sheath for temperature sensor
10 – G 1“ F return line from thermal store
11 – G 1“ F outlet to thermal store
12 – TSV3BM load valve
13 – G 1/2“ M drain valve with hose tail
14 – G 6/4“ Fu × G 1“ F × G 1/2“ F ball valve w. check valve and sheath for temperature sensor
15 – Handle for ball valves
16 – G 6/4 “ Fu × G 1“ F × G 1/2“ F ball valve w. sheath for temperature sensor
17 – G 1/2“ M drain valve with hose tail
18 – LK 840 mixing valve
19 – Drain plugs
20 – G 1“ Fu × G 1“ F × G 1/2 “ F ball valve w. sheath for temperature sensor
21 – DN 20 ball valves to be mounted on connection points 10 and 11

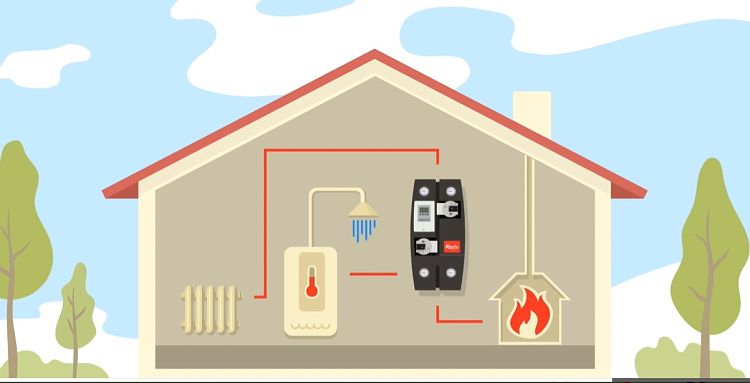

CONNECTION DIAGRAM
