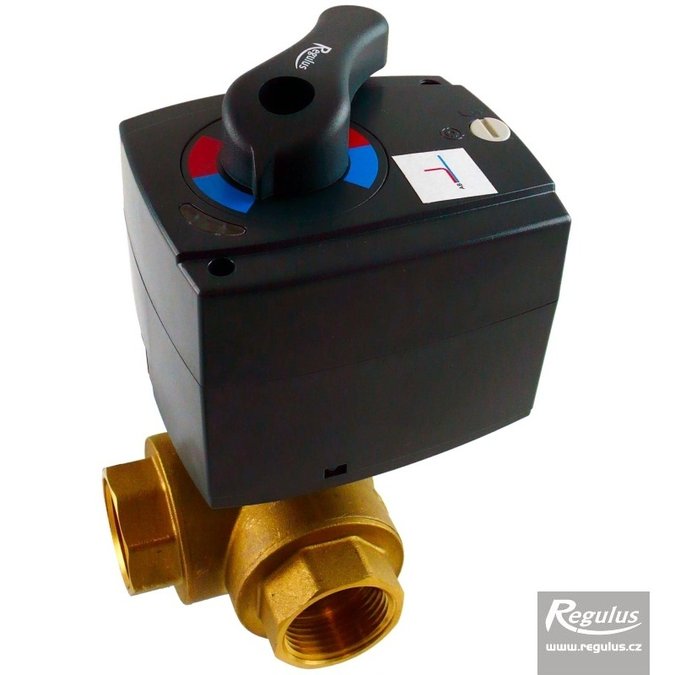

VZK S 325 T 1F 3-way ball valve

Ball zone valve intended for heating or solar thermal systems with water or antifreeze fluid and for systems with drinking water. The valve is equipped with a two-pole control actuator. The actuator can be removed without removing the valve from the system. When voltage is applied to the brown conductor, the actuator rotates clockwise (the path A-AB opens), when voltage is applied to the black conductor, the actuator rotates counter-clockwise (the path B-AB opens), without voltage the actuator remains in its latest position. The opening time is 48 s.

Code 18675
Availability
in stock
Label VZK S 325-230-2P-60 T 1F
Connection 1"
Kvs 14,3
Valve type three-way
Actuator 3-point control
Code 18675
Units pcs
Packaging box
Packaging dimensions 19 x 13 x 15 cm
Gross weight 1,738 kg

Download

Technical Data Sheet| Show (PDF 700 kB)
Manual| Show (PDF 2.1 MB)
